287mm Spigot Aluminum Truss System For Exhibition Concert

  • 1
  • 2

Brand Name : LEDIKA

Model Number : SQS287

Place of Origin : Guangzhou ,China

MOQ : 1 set

Price : FOB，EXW

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs/per month

Delivery Time : 2-3 weeks

Packaging Details : Air bubble film or carton

Model No. : SQS287

Material : aluminum 6061/6082-T6

Color : silver or OEM

Shape : Square,Triangle,Straight,Circle,Star

Size : 287*287mm Customized Available

Application : Music,Performance,Events,Concert,Exhibition

Main tube : 50*3mm

Length : 0.5m-4m,available

Packing : Air bubble film or carton

Brace tube : 20*2mm/25*2mm/30*2mm，Customized Available

Connection way : Spigot Connector

Feature : Heavy Load,Portable/no rust

Contact Now

287mm Aluminum Spigot Truss Frame for Exhibition & Concert

SQS Series truss are connected by spigots.It's easy to set by hammer.Nice ,Fast, Easy, Saving time and Saving labor.It's suitable for mobile events,tower of Medium project and ceiling system indoor.Meanwhile ,widely used for exhibition truss .Available size:450*450/400*400/387*387/287*287mm. There are 2 style for SQS series truss,ordinary one with brace and indoor one without brace .They have their respective pictures for reference . Ordinary type's characteristic is that , when SQS is choosed as tower,its brace's design can make you climb aluminum truss conveniently ,comfortably ,safely. So ordinary aluminum truss is generally choosed and used as team or tower. Indoor type's characteristic is that its design has no brace, so when it is choosed and used as tower,it is not smooth and comfortable to climb .So it is not suitable as tower.Its brace is fully adopted "△" type,when it is used as ceiling or beam,you will see other kinds of aluminum trusses can't be comparable with its slinky degree.But all the trusses have sameness:they have brace, two tilted pipes derive from "▽",because each "△"type,structures a triangle,its stability can greatly strengthen aluminum metal safety factor.

Truss section specification
Size of Truss 287*287mm 387*387mm 400*400mm 450*450mm
connection Spigot Spigot Spigot Spigot
Truss main tube Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm
standpipe Φ20*2mm Φ30*2mm Φ30*2mm Φ30*2mm
Truss Brace tube Diameter Ø 20mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm
Truss Joint Diameter Ø 50mm Diameter Ø 50mm Diameter Ø 50mm Diameter Ø 50mm
Max Loading 520-800kg 690-930kg 690-930kg 790-1100kg
Max Span 12m 16m 16m 18m

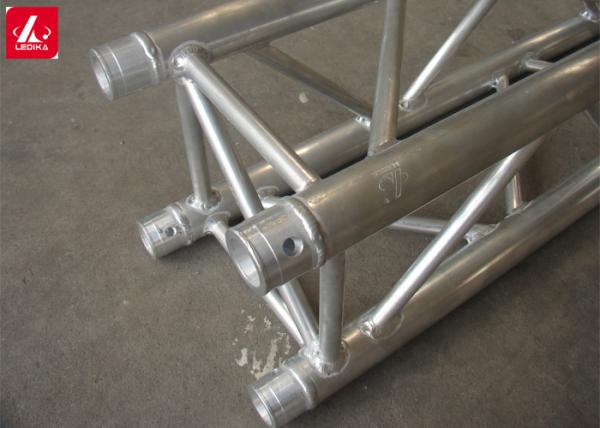

287mm Spigot Aluminum Truss System For Exhibition Concert

287mm Spigot Aluminum Truss System For Exhibition Concert

287mm Spigot Aluminum Truss System For Exhibition Concert
